MTN Ghana introduces new frequency

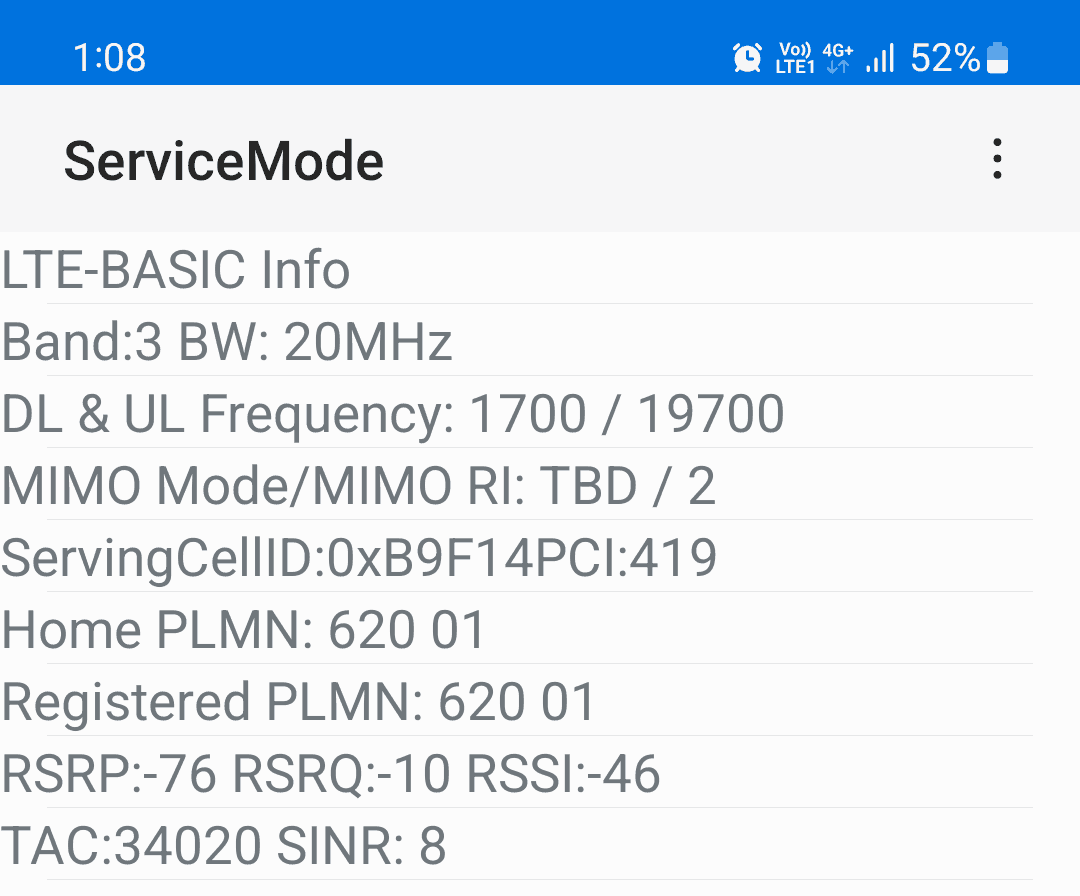

4G+, ServiceMode LTE-BASIC Info Band:3 BW: 20MHz DL & UL Frequency: 1700 / 19700 MIMO Mode/MIMO RI: TBD / 2 ServingCellID:0xB9F14PCI:419 Home PLMN: 620 01 Registered PLMN: 620 01 RSRP:-76 RSRQ:-10 RSSI:-46 TAC:34020 SINR: 8

MTN recently started to use new frequencies (channel 1700, 20 MHz) in Sunyani, in addition to its existing frequencies.

The following new carrier aggregation combinations are being used:Unconfirmed is CA_3A-7C-20A (up to 750 Mbps or 1350 Mbps).

Much of the 'new' frequencies were previously used by Glo/Globacom to provide 2G DCS1800 services.

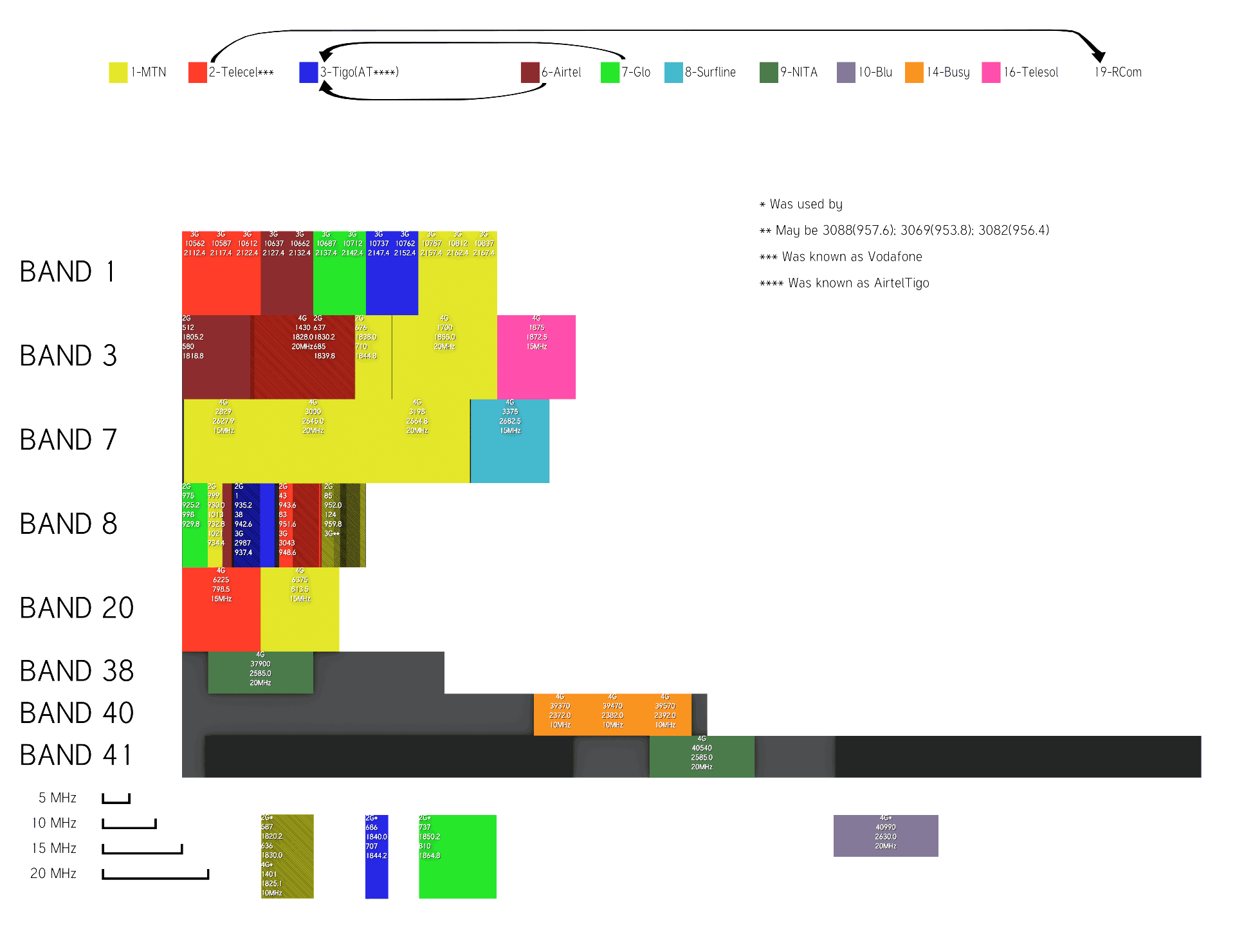

Most notably, for Band 3, Glo 2G 737 to 810 is off the graph of the image, but MTN 4G 1700 20MHz is on the graph.What the spectrum now approximately looks like. Revised Sep 15.
